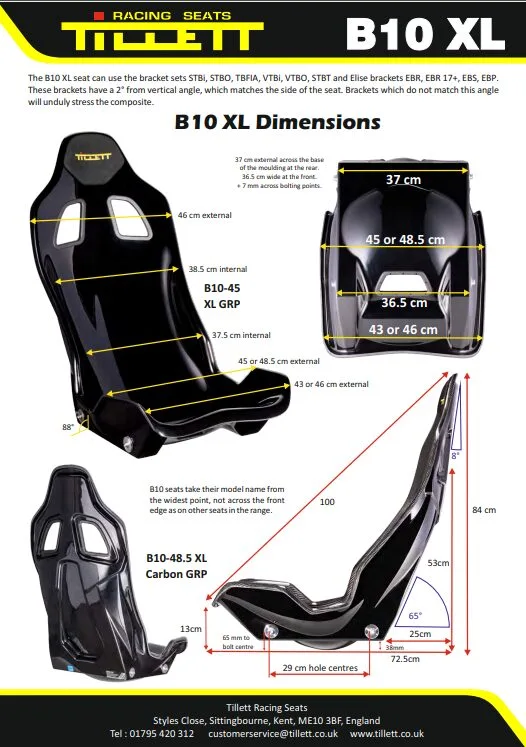

Tillett B10 XL


Tillett B10 XL Seat

With its contemporary design the B10 seat is stylish, lightweight, rigid and compact. Based on Tillett’s popular B6 race shape, modified to be more convenient for daily driving.

The B6 has always been a great seat for those that liked a low head position with an enveloping and ultra-supportive shape, but often the race type belt holes were awkward when trying to feed a factory three-point seat belt through.

The B10’s cut away sides allow convenient use of the stock belts with the added benefit that getting in and out of the seat is also easier. However, we have been careful to make sure that the support of the driver is not compromised.

The front of the seat kicks up a little more than the B6, which not only aids drivers with longer legs but also helps if the seat were to be angled to a more upright position.

A more upright seat allows a comfortable arm length in saloon cars, where the steering column cannot be extended, or lengthened towards the driver. The headrest height has been raised over the B6 seat so that a driver with along torso does not run out of headrest support.

The B10 has been given a modern fresh look and although its highly technical laminate is rigid and tough, it weighs only 4.5 kg. The seat comes complete with a Dinamica® suede covered headrest pad.
The optional suede covered cushion and back panels add 1 kg and are recommended when the car is intended for mainly road use.

The B10 can also use a full six-point race harness and is Hans compatible for those with a serious track car.

The seat uses our latest FIA seat fittings to make certain it is mounted securely and can use all of our 2° bracket range.

Available with no seat inserts, black suede inserts, or silver diamond stitched inserts.

$1,419.57

Clear
QTY

Details


  • Saloon car seating angle.
  • B6 based shape with swept away sides for easy vehicle access and road seat belts.
  • Strength and rigidity of a twin skin moulding.
  • 4.5kg, weights can vary by 10%.
  • Driver is lowered compared to standard saloon seats.
  • Suits drivers up to 100 kg 36-inch jeans waist size.
  • Compatible with road seat belts or race harness and a 20° Hans device (5 or 6 point race harness recommended).
  • Stainless steel side mounting points.
  • Dinamica® covered headrest panel included as standard.
  • Option of cushion and back panels covered in Dinamica® suede.
  • Body mirroring shape is comfortable without padding.
  • A great option for open top cars and harsh environments.
  • Compatible with Tillett 2° side mount brackets.
  • Designed and manufactured in the United Kingdom.
