What is the flow rate and operating fuel pressure of the ID2600-XDS? U2

The ID2600-XDS flows 2,600 cc/min at 3 bar, or 43.5 psi, and up to 3,810 cc/min at 9 bar, or 130.5 psi.

What fuel types can the ID2600-XDS support? U3

The ID2600-XDS is intended for ethanol and methanol applications. The complete fuel system should be designed to support the fuel type and volume required

Do ID2600-XDS injectors require ECU tuning? U4

Yes. ID2600-XDS injectors require proper ECU calibration. A qualified tuner should configure injector scaling, dead time, offset data, short-pulse behavior, fuel-pressure compensation, and fuel type. Injector calibration is not optional. Poor injector data and tuning can cause rough idle, poor cold starts, unstable fuel trims, lean transitions, misfires, and unsafe fueling under throttle.

What connector or plug-and-play adapter is required for this application? L174

The ID2600-XDS uses a USCAR electrical connector, but a plug-and-play adapter is not listed for Toyota Corolla/Yaris GR, 2020+. Confirm the required pigtail or harness modification with T1 Race Development before ordering.

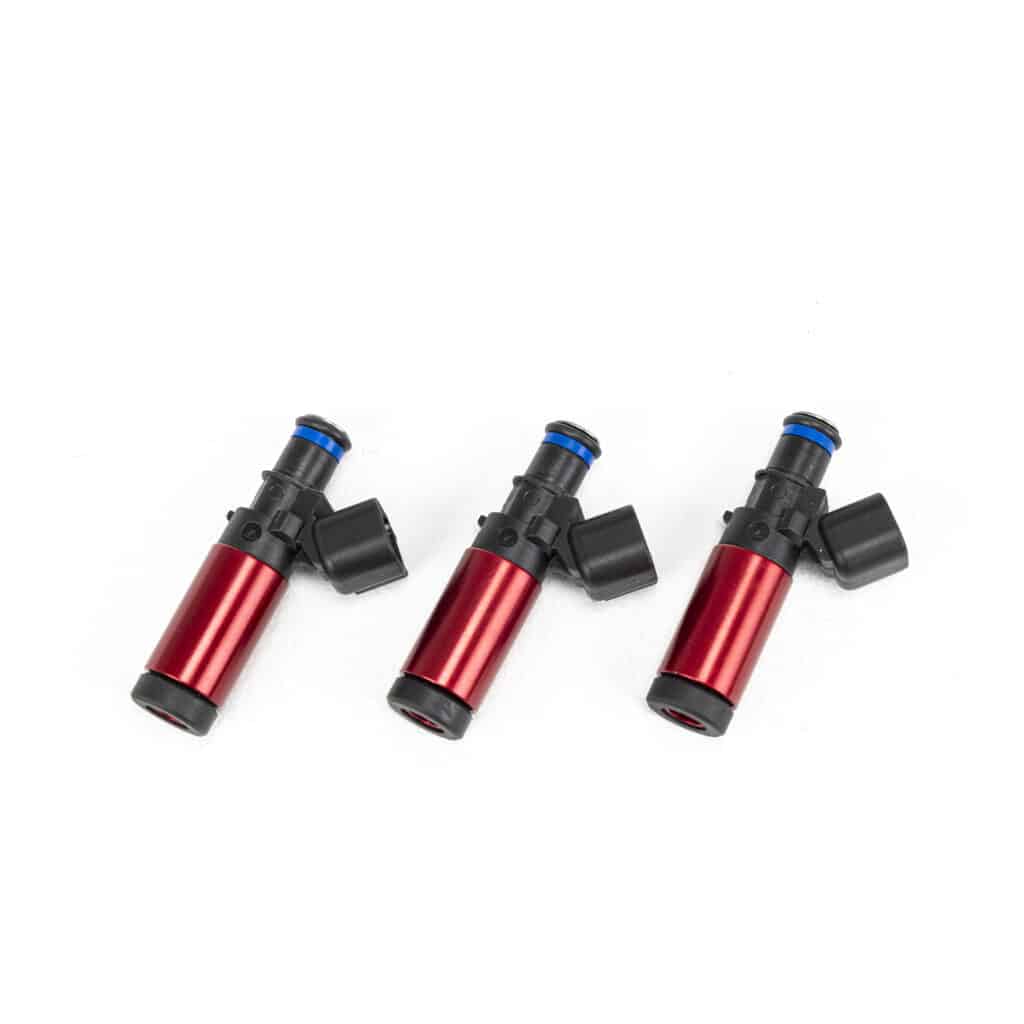

Corolla GR and Yaris GR 2020+ | ID2600-XDS | Injector Dynamics | 2600.55.11.D.3

Name: Corolla GR and Yaris GR 2020+ | ID2600-XDS | Injector Dynamics | 2600.55.11.D.3
Brand: T1 Race Development
SKU: 2600.55.11.D.3 - Corolla GR Yaris GR 2020+
Availability: InStock
Rating: 5 (1 reviews)

Details
Options

Corolla GR and Yaris GR 2020+. 11 machined top, 34.55.D bottom adapters. Set of 3.

The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport.

The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol.

The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x.

The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.

Basic Specifications

Nominal Flow Rate – 2600cc/min @ 3.0 Bar (43.5 psi)
Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane

$1,195.44

Details

Frequently Asked Questions

This ID2600-XDS injector set, SKU 2600.55.11.D.3, is a set of 3 injectors configured for Toyota Corolla/Yaris GR, 2020+. The listing uses corolla GR and Yaris GR 2020+. 11 machined top, 34.55.D bottom adapters.
